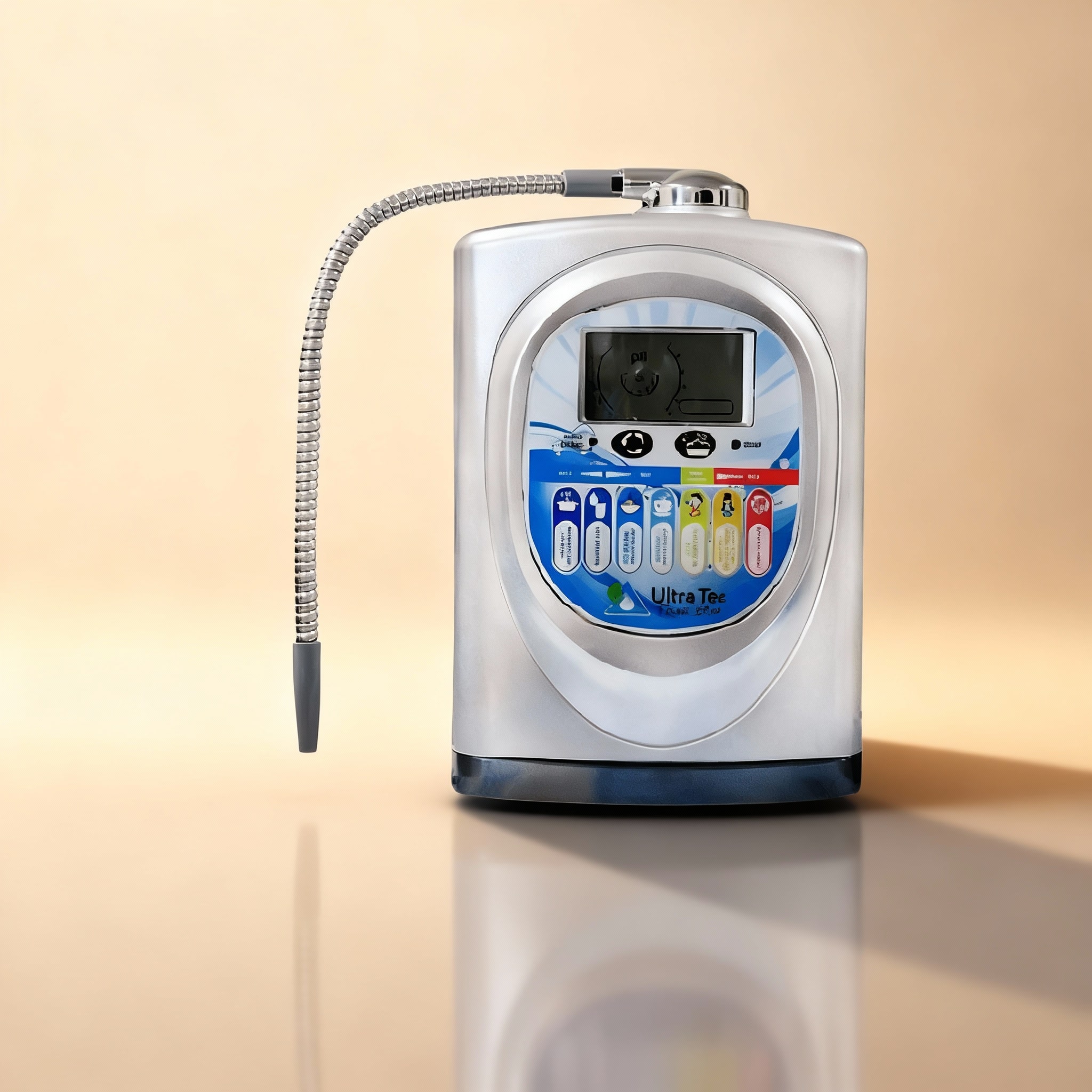

Water Ionizer/ Alkaline Water Ionizer Machine
A water Ionizer/Alkaline machine is a device that can be used to filter and ionize water. The machine uses a process called electrolysis to remove impurities from the water and add ions that make the water more alkaline.
What is an Alkaline/Ionizer Machine?
An Ionizer/Alkaline Water Machine is a state-of-the-art appliance that uses electrolysis to separate water into alkaline and acidic streams. The alkaline water produced is rich in antioxidants and minerals, while the acidic water can be used for cleaning and other household applications. By increasing the pH level of your drinking water, these machines provide a range of health benefits and enhance the overall quality of your water.
Key Features and Benefits
- Healthier Drinking Water: Alkaline/ionized water is known for its potential health benefits, including improved hydration, better digestion, and enhanced detoxification. It can help neutralize acidity in the body, promoting overall wellness.
- Antioxidant Properties: The ionization process enriches the water with antioxidants, which can help combat free radicals and reduce oxidative stress, contributing to better health and longevity.
- Improved Taste: Alkaline water has a smoother, more refreshing taste compared to regular tap water. Many users report that it enhances the flavor of beverages and food.
- Mineral Enrichment: The ionization process retains essential minerals such as calcium, magnesium, and potassium, which are vital for maintaining good health.
- Versatile Use: While alkaline water is ideal for drinking and cooking, the acidic water produced can be used for cleaning, disinfecting, and even skincare.
Production of Alkaline Water
When the tap is turned on, water enters into ionizer. The indicator light will light up and three beeps will be heard, When the alkaline light will light up you can select different levels of 1,2 ,3,4 for different PH values. When light turns violet it indicates strong alkaline water while blue indicates normal.
Production of Acidic Water:
When the acidic switch is pressed water enters the ionizer and a continuous beep will be heard(background light turns Red) light turns off 1 minute after the water supply is turned off and the water ionizer automatically switches to alkaline mode.
A beeping sound continuous when the ionizer in acidic mode to remind you not to drink acidic water
Troubleshooting
| Problem | Reason and how to handle the problem |
| The green light does not turn on during production
(indicating no electrolysis) |
• Water pressure too low, as a result, the ionizer does not function properly. The additional pump has to be fixed.
• Check to see if the filter element is properly fixed. Improper installation of filter element results in malfunction of lonizer. Straighten the outlet tube. |
| Improper output of ionic water or clean water |
|
| Chalky alkaline ionic water is produced | It is normal for the alkaline ionic water produced to be slightly chalky. This is due to the air bubbles present in the water. The water will become clear after a while and it is alright to drink the water. |
| Brown color particles present in the ionic water | The brown color is probably due to the presence of small amounts of iron and it is harmless. Reduce the alkalinity level. |
| White precipitate floats on alkaline ionic water when stored or a thin film appears in the internal wall | This is a reaction between calcium ions and carbonic acid in the air, resulting in crystallization (solid calcium particles). It is alright to drink the Water.
The thin film is solid calcium. Wash it off with Vinegar. |
| When the ionizer is not used for long periods of time | Disconnect from the power supply and release water from the water outlet and the filter assembly. |
| Water output drops gradually | Possibly due to crystallization on the inner walls of the output tube, obstructing flow. Request for cleansing by our service personnel or purchase a new filter element from us |
MAIN SPECIFICATIONS
| Voltage | 240V(110V)/60Hz | ||
| Dimensions (mm) | H310xW220xD125 | Power consumption | app.320W (Max |
| Weight | app. 4.0kg | Power cord length | app. 9 ft |
| Water pressure | 1.6.5kg/m | Output | 1.3liters/min. |
| Electrodes | Hi-tech precise titanium-platinum alloy plates from Japan Precise ceramic ionic membrane from Japan | ||
| Filter material | Carbon fibre filter element from Japan | ||
| Electrolysis | Continuous electrolysis (built-in ammeter) | ||
| Safety device | Fuse10A Circuit board: Overheating protection at 1A current Built-in thermostat protection for transformer | ||
| Maximum temperature on continuous use | <40°C | ||
| Water cleansing device | Total Flow app 3000L-12000L
Cleansing power 5.0L/min Free residual salt removal, foul odour removal―トリハロメタン |
||
| Electrolysis | Ideal rate of water treatment 2L/min [Input pressure @0.1MPa (app. 1kgf/cm)]
Output 3L/min [@0.2MPa input pressure (app. 2kgf/cm)] Electrolysis stages Alkaline 4 stages, Acidic 2 stages Continuous electrolysis time (Stages 1-2) app. 1 hour (stages 3-4) app. 30 min. Electrolytic cleansing Automatic cleansing each time water is turned on, cleansing alarm increased thereafter |
||
